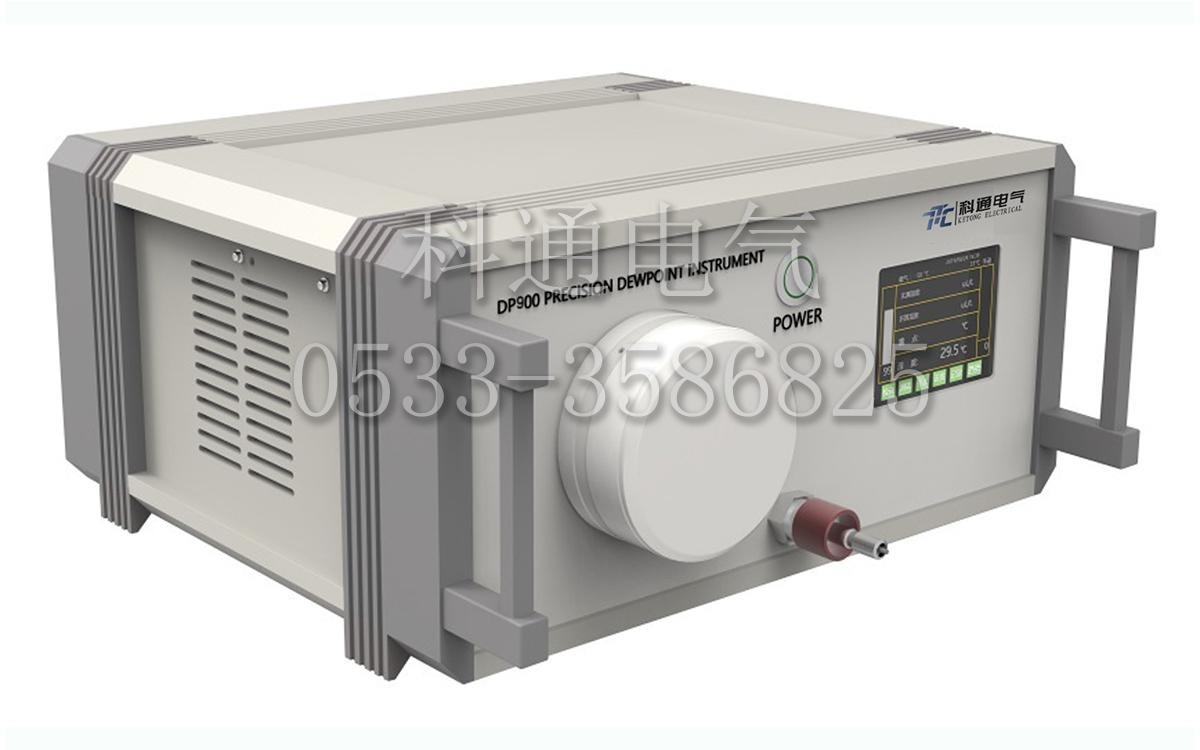

Dp900 intelligent cold mirror precision dew point tester

Patented residual gas removal device: intelligent exhaust of residual gas in the gas chamber, improve the accuracy of measurement, extend the service life of electrochemical sensor;

Dynamic carrier gas error correction function: unique CGC working mode to eliminate the measurement error caused by the mixture of SF6 and the outside air in the tested chamber;

Anti cross interference technology: put chemical filter at the front end of SO2 and co sensors, and then eliminate cross interference accurately through software algorithm to ensure the accuracy of measurement value;

Dynamic carrier gas error correction function: unique CGC working mode to eliminate the measurement error caused by the mixture of SF6 and the outside air in the tested chamber;

Anti cross interference technology: put chemical filter at the front end of SO2 and co sensors, and then eliminate cross interference accurately through software algorithm to ensure the accuracy of measurement value;

Applicable standard: DL / T 506-2007

Dp900 intelligent cold mirror precision dew point tester is widely used in scientific research, electric power, metallurgy, petrochemical, electronics, textile, medicine, food, air conditioning, aerospace and other fields. Many production processes need to measure and control humidity. The cold mirror dew point meter has the characteristics of high accuracy, wide range and convenient use. Therefore, it is widely used as a standard instrument for humidity measurement at home and abroad, and also as an industrial on-line humidity measurement instrument.

The instrument is a brand new product developed by our company according to the latest technology development trend at home and abroad and the needs of power industry at home and abroad. It integrates signal detection technology, model predictive control and data processing technology, selects high-quality imported advanced devices with high performance and high integration, highly embodies the advanced nature of digital technology, and applies key technologies to invention patents, thus improving the technical level of domestic instruments.

The measurement of the instrument is based on the principle of cold mirror, which is mainly composed of four systems: optical system, cooling system, gas system, electric control system, etc. to ensure that the actual humidity situation can be directly and accurately reflected without lag.



Functional features

The 5-inch touch color LCD screen is adopted, with friendly interface and easy operation;

The original imported measuring unit is used to track and display the curve of the whole measuring process and check the trend of the balance state in real time;

The dew point / humidity direct reading function is simple, easy to understand and intuitive;

The unique heat pipe heat dissipation technology is much better than fin heat dissipation, making the measurement results more accurate;

Intelligent humidification technology can condense as soon as possible and accelerate the test progress in high temperature environment or when measuring very dry gas;

The model predictive algorithm control technology can achieve the balance state faster;

The refrigeration technology of four-stage cold pump is adopted, and the theoretical temperature difference is as high as 107 ℃, and the refrigeration is more powerful;

When measuring at any ambient temperature, the measurement result is converted to the humidity conversion value under standard conditions (20 ℃);

The unique dry air circuit design greatly reduces the interference of the external environment on the detection and operation;

The anti supercooled water technology is adopted to effectively prevent the influence of supercooled water on the measurement accuracy;

The pressure difference micro hole atomization technology is adopted to effectively prevent the influence of sample gas liquefaction on the measurement accuracy;

At least 360 pieces of measurement results can be stored for future reference;

The standard USB data interface is convenient for downloading the original data;

It has infrared printing access function and can print measurement data wirelessly at any time;

 AC220V and DC14.8V (or battery) two ways of power supply, convenient for field use;



technical parameter

Measurement range: + 20 ～ - 80 ℃

Measurement accuracy: ≤± Zero point one Temperature

Repeatability: ≤± Zero point two Temperature

Measurement time: 2-4 minutes

Sampling gas flow: 15-60l / h, generally 25-30l / h

Sampling gas pressure: 10bar ～ 10mbar

Measurement mode: manual / automatic

Warning function: the measured gas flow is too small, the measured gas flow is too large, and the light energy is too low

Working environment temperature: - 20 ℃ ~ 50 ℃

Environment humidity: 15% - 90%

Weight: no more than 5kg

Case size: 300x280x150

Battery: DC14.8V 、13AH
